Three-Phase Brake Motor, 2 hp HP, 145TC Frame, 208-230/460V AC Voltage, 1, 745 RPM Nameplate RPM MPN:122250.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G402014831

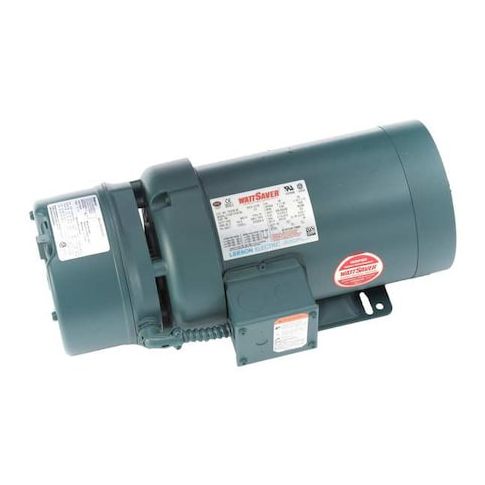

Three-Phase Brake Motor, 2 hp HP, 145TC Frame, 208-230/460V AC Voltage, 1, 745 RPM Nameplate RPM
This three-phase brake motor is designed for heavy-duty applications requiring continuous operation. With a 2 hp rating and 1,745 RPM, it provides reliable power for demanding tasks. Its totally enclosed fan-cooled design and rigid base ensure efficient cooling and stability. Suitable for use at 208-230/460V AC, this motor is ideal for applications in manufacturing, material handling, and other industries where precise control and consistent performance are crucial. Its compact 145TC frame makes it easy to integrate into existing systems, and its continuous duty cycle and CW/CCW rotation make it a versatile solution for a wide range of applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor longevity
- Motor Service Factor of 1.15 for increased reliability and efficiency
- Thermal Protection via T-Stat for safe operation in high-temperature environments
Top product applications:
- Conveyor Systems
- Automated Material Handling
- Printing Presses
Brake Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2.0 A Full Load Amps, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 11.00
- Package Height: 11.00
- Package Weight: 55.00
Product info last updated on February 19, 2026 6:05pm UTC
Category: Motors
