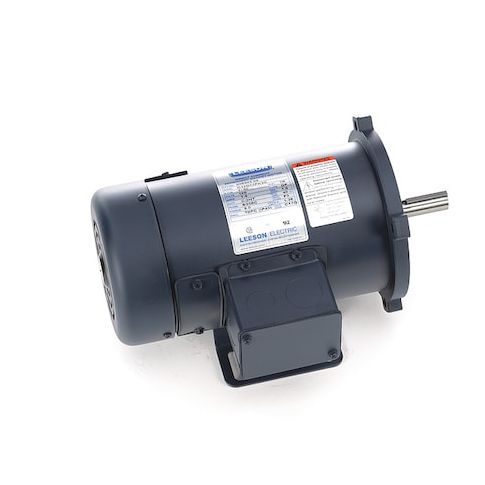

DC Permanent Magnet Motor, 56C MPN:098003.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G400829543
DC Permanent Magnet Motor, 56C
The Leeson 1/4 HP Permanent Magnet DC Motor is a reliable and efficient solution for various applications. Ideal for continuous duty cycles, this motor operates at 1,750 RPM and 180V DC, with a full load amp rating of 1.40 A. Its totally enclosed fan-cooled design ensures optimal performance in high-temperature environments, up to 40°C. Suitable for use in industrial settings, the motor's rigid base mounting and CW/CCW rotation make it versatile for a range of applications, including material handling, conveyor systems, and robotics. Its compact size and robust construction make it a valuable addition to any industrial setup.
Top product features:
- Permanent Magnet DC Motor Design
- Totally Enclosed Fan-Cooled Motor Enclosure
- Shaft Rotation in Both Clockwise and Counterclockwise Directions
Top product applications:
- Electric water pumps
- Conveyor systems
- Industrial automation equipment
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1/4 HP, Nameplate RPM 1,750 RPM, Voltage 180V DC, 1.40 A Full Load Amps, 56C Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Removable Base No, Shaft Dia. 5/8 in, Shaft Length 2 1/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 10.90
- Package Height: 11.60
- Package Weight: 24.20
Product info last updated on February 24, 2026 4:02pm UTC
Category: Motors
