WashdownMotor, 2hp, 1745RPM, 230/460VAC MPN:119523.00

Discount: See in Cart
Free Shipping
In Stock
Brand: Leeson
Part #: 119523.00
UPC: 691720052969
SKU
510-G400722950
Regular Price $4,364.49 Special Price $3,117.49

BBB Accredited - ResellerRatings Elite Member - SBA Service-Disabled Veteran-Owned Certified

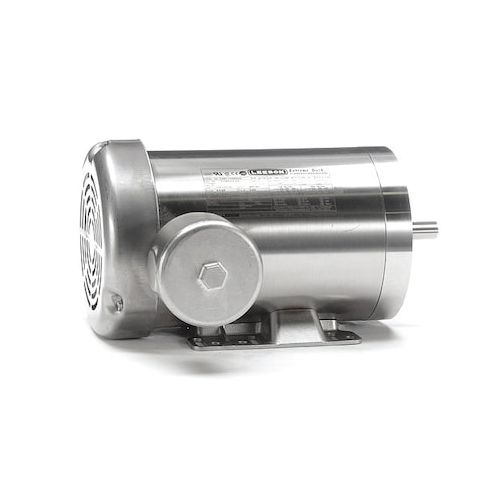

WashdownMotor, 2hp, 1745RPM, 230/460VAC

This Leeson Washdown Motor is a reliable and efficient solution for heavy-duty applications in harsh environments. With a 2hp rating and 1745 RPM, it's perfect for use in washdown areas, food processing, and other industries where high-pressure cleaning is necessary. The motor's totally enclosed fan-cooled design provides maximum protection against dust and water, ensuring continuous operation and extending its lifespan. Its 1.2 service factor and manual thermal protection also ensure safe and reliable operation. Suitable for use in a variety of applications, including food processing, chemical processing, and pharmaceutical manufacturing, this motor is a valuable addition to any industrial setting.

Top product features:

  • Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
  • Motor Service Factor of 1.2 allows for continuous operation at high loads without overheating.
  • 56HC Frame design provides a compact and rugged motor housing for harsh environments.

Top product applications:

  • Industrial laundry and cleaning facilities
  • Water treatment and processing plants
  • Food processing and preparation areas
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled

Additional Information

  • Country of Origin: US
  • Drop Ship Item: Yes
  • Blind Ship Eligible: No
  • LTL Freight Required: No
  • Lead Time: Ships in 15 days
  • Minimum Order Quantity: 1
  • Unit of Measure: EA
  • Package Length: 17.94
  • Package Width: 13.06
  • Package Height: 12.88
  • Package Weight: 44.00
