Auger Duty Motor, 3/4 HP, 115/230V AC, 1, 800 Nameplate RPM, 56YZ Frame MPN:117889.00
Auger Duty Motor, 3/4 HP, 115/230V AC, 1, 800 Nameplate RPM, 56YZ Frame

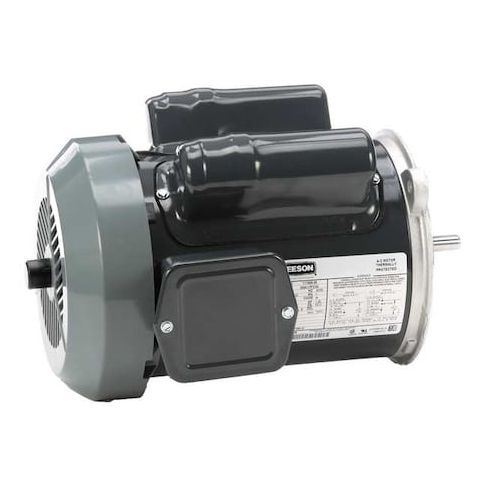

This Leeson Auger Duty Motor is a reliable and efficient solution for various applications, including auger drives, pumps, and conveyors. With a 3/4 HP, single-phase design and a nameplate RPM of 1,800, this motor provides continuous operation in demanding environments. The capacitor-start/run design ensures smooth starts and reduced energy consumption. The totally enclosed fan-cooled design and C-face mounting make it easy to install and maintain. Suitable for use in a variety of industries, including agriculture, construction, and manufacturing, this motor offers a cost-effective and durable solution for applications requiring high torque and reliability.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure
- Shaft Rotation in Both Clockwise and Counterclockwise Directions
- Manual Thermal Protection for Motor Overheating
Top product applications:
- Pump and well applications
- Concrete mixer applications
- Screw conveyor and auger applications
Auger Drive Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.4/4.5-4.2 A, 56YZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 3, 2026 11:52pm UTC
Category: Motors
