HazardousLocationMotor, 1-1/2hp, 1725RPM MPN:056T17G15602
HazardousLocationMotor, 1-1/2hp, 1725RPM

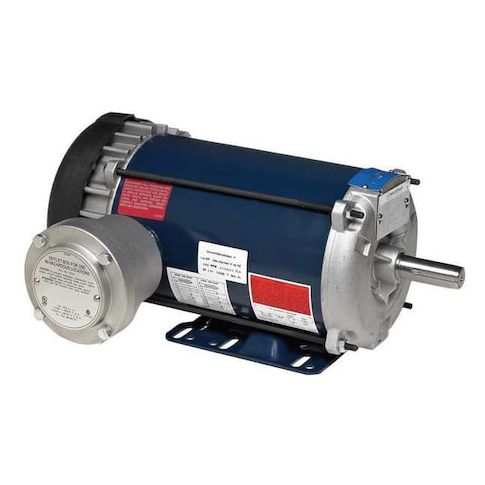

The Leeson Hazardous Location Motor is a reliable and efficient solution for applications in hazardous environments. Designed for use in Class I and Class II locations, this motor operates at 1725 RPM and provides 1.5 horsepower. Its three-phase design and totally enclosed fan-cooled enclosure ensure safe and continuous operation in temperatures up to 40 degrees C. Suitable for use in various industries, including oil and gas, chemical processing, and pharmaceutical manufacturing, this motor offers a high service factor and automatic thermal protection. Its compact design and easy installation make it an ideal choice for a wide range of applications.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Continuous duty cycle
Top product applications:
- Oil and gas drilling operations
- Chemical processing plants
- Petrochemical refineries
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 4.6/2.3 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.60
- Package Width: 11.50
- Package Height: 11.20
- Package Weight: 50.80
Product info last updated on February 7, 2026 4:00pm UTC
Category: Motors
