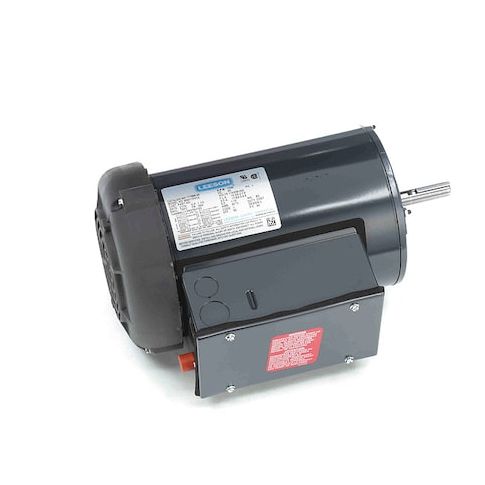

Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:M009089.00
Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 18.0/9 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 13.00
- Package Height: 10.70
- Package Weight: 41.50
Product info last updated on March 11, 2026 8:08pm UTC
Category: Motors
