Farm Duty Motor, Capacitor-Start, 1/3 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:M002256.00
Farm Duty Motor, Capacitor-Start, 1/3 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame

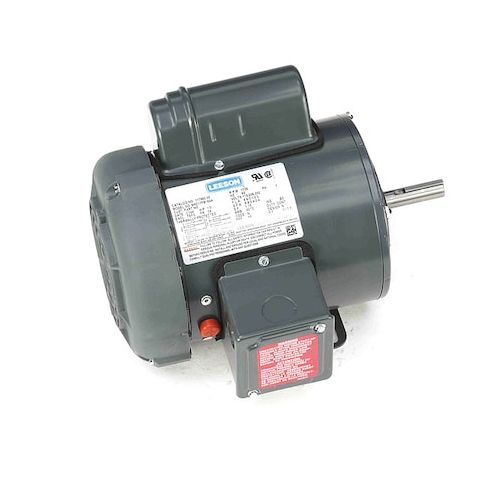

This Leeson Farm Duty Motor is designed for heavy-duty applications, featuring a capacitor-start design and a rugged, totally enclosed fan-cooled enclosure. Suitable for use in harsh environments, it operates at 1,725 RPM and is powered by 115/208-230V AC. With a service factor of 1.15 and a continuous duty cycle, it provides reliable performance in demanding situations. Ideal for use in farming, construction, and industrial settings, this motor is a reliable choice for applications requiring a high level of power and durability. Its compact design and robust construction make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved dust and moisture protection
- Capacitor-Start motor design for efficient starting and running
- Manual thermal protection for user-adjustable temperature control
Top product applications:
- Pumps
- Fans
- Compressors
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 5.8/2.2.7-2.9 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.30
- Package Width: 10.70
- Package Height: 10.80
- Package Weight: 23.61
Product info last updated on March 1, 2026 11:46pm UTC
Category: Motors
