Farm Duty Motor, Capacitor-Start, 1 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:M009088.00
Farm Duty Motor, Capacitor-Start, 1 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame

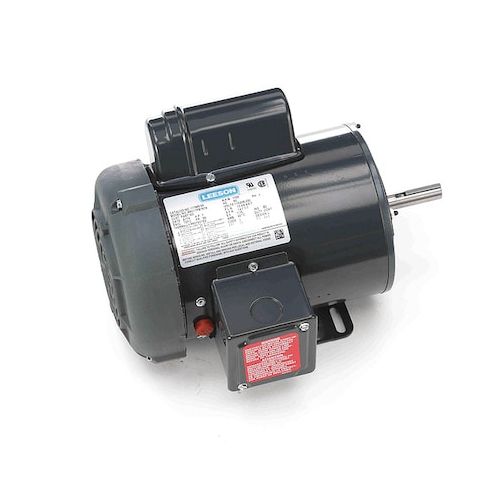

This Leeson Farm Duty Motor is a reliable and efficient solution for agricultural and industrial applications. Its capacitor-start design ensures a smooth and consistent performance, while its single-phase operation makes it easy to install and integrate into existing systems. With a 1 HP rating and 1,725 RPM, this motor can handle demanding tasks such as powering pumps, irrigation systems, and other equipment. Its totally enclosed fan-cooled design provides protection against dust and moisture, extending its lifespan and reducing maintenance needs. Ideal for use in barns, farms, and industrial settings, this motor offers a cost-effective and reliable solution.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Manual thermal protection for operator control and safety
- Single Phase, Capacitor-Start motor design for efficient operation at a lower cost
Top product applications:
- Pump applications for irrigation systems and water treatment facilities
- Fans for ventilation and cooling systems in agricultural and industrial settings
- Generators for backup power in remote areas or during power outages
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 13.6/6.6-6.8 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 10.80
- Package Height: 10.50
- Package Weight: 32.95
Product info last updated on February 5, 2026 10:57pm UTC
Category: Motors
