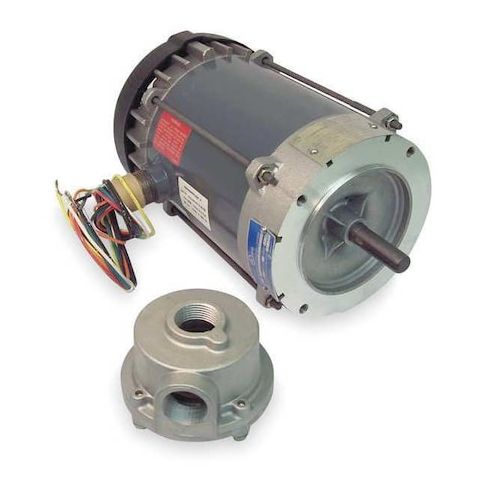

Hazardous Loc Mtr, 3 Ph, TEFC, 2 HP, T3B MPN:145TTGR16035
Hazardous Loc Mtr, 3 Ph, TEFC, 2 HP, T3B
This Leeson Hazardous Location Motor is designed for use in hazardous environments and features a totally enclosed fan-cooled (TEFC) design for increased safety and efficiency. With a 2-hp rating and 1,760 RPM, it's suitable for a variety of applications including oil and gas, chemical processing, and pharmaceutical manufacturing. Its Class I, Class II, and T3B temperature rating ensures safe operation in harsh conditions. The motor's 1.15 service factor and T-stat thermal protection provide reliable performance and protection against overheating. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design for efficient cooling and reduced maintenance
- Hazardous Location Class I, Class II certification for safe operation in hazardous environments
- Continuous Duty Cycle for uninterrupted operation in demanding applications
Top product applications:
- Heavy industrial equipment in hazardous locations
- Pumps and other machinery in areas with explosive atmospheres
- Fans and blowers in hazardous locations such as chemical plants or refineries
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 6.2-6.0/3.0 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 8.20
- Package Height: 7.35
- Package Weight: 56.00
Product info last updated on March 3, 2026 3:02pm UTC
Category: Motors
