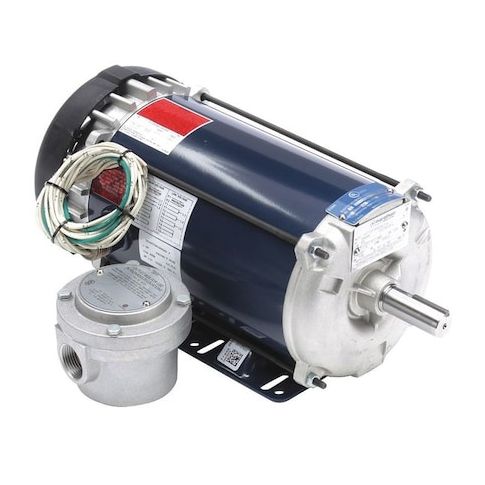

Hazardous Loc Mtr, 3 Ph, TEFC, 2 HP, T3B MPN:145TTGR16040
Hazardous Loc Mtr, 3 Ph, TEFC, 2 HP, T3B
This hazardous location motor is designed for use in areas with explosive or flammable gases and vapors, meeting Class I, Class II, and T3B temperature code requirements. It's a three-phase, totally enclosed fan-cooled (TEFC) motor with a 2 horsepower rating and 1,760 RPM nameplate speed. Suitable for continuous duty cycles, this motor features a 1.15 service factor and thermal protection. Its compact 145T frame makes it ideal for applications in harsh environments, such as oil and gas refineries, chemical plants, and other industrial settings where reliability and safety are paramount.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Motor Enclosure
- Continuous Duty Cycle
Top product applications:
- Pumps
- Compressors
- Fans
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 6.0/3.0 A, 145T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.31
- Package Width: 11.19
- Package Height: 9.75
- Package Weight: 55.00
Product info last updated on March 3, 2026 6:20pm UTC
Category: Motors
