Washdown Mtr, Cap Strt, TEFC, 1/2hp, 1725rpm MPN:056C17W15326
Washdown Mtr, Cap Strt, TEFC, 1/2hp, 1725rpm

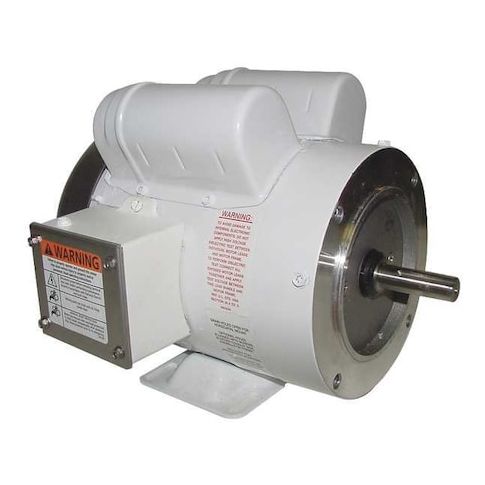

This 1/2 horsepower, 1725 RPM washdown motor from Leeson is designed for use in harsh environments, making it ideal for applications in food processing, pharmaceutical manufacturing, and other industries where cleanliness is paramount. With a totally enclosed fan-cooled (TEFC) design and a nameplate RPM of 1725, this motor provides reliable and efficient operation in a wide range of applications, including conveyor systems, pumps, and mixers. The motor's continuous duty cycle and NEMA Design N rating ensure that it can operate at maximum capacity for extended periods, making it a valuable asset for any facility requiring high-performance, low-maintenance power.
Top product features:
- Totally Enclosed Fan Cooled design for protection from dust and liquids
- Capacitor-Start motor design for efficient starting and reduced wear
- Usable at 208V for flexibility in installation and operation
Top product applications:
- Pump motor for chemical processing
- Conveyor motor for food processing
- Water treatment plant motor
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.00
- Package Height: 12.00
- Package Weight: 26.00
Product info last updated on March 27, 2026 4:30am UTC
Category: Motors
