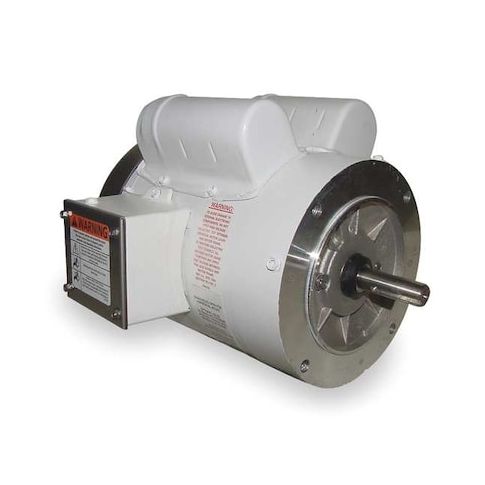

Washdown Mtr, Cap Strt, TEFC, 1 HP, 1725 rpm MPN:056C17W15333
Washdown Mtr, Cap Strt, TEFC, 1 HP, 1725 rpm
This 1 HP washdown motor from Leeson is designed for use in harsh environments, featuring a totally enclosed fan-cooled (TEFC) design and a durable 56C frame. With a single-phase capacitor-start design, it provides efficient operation and is suitable for applications such as food processing, pharmaceutical manufacturing, and other industries where high-pressure washdowns are required. Its compact size and continuous duty cycle make it an ideal choice for space-constrained areas. The motor's high service factor and thermal protection ensure reliable performance, while its NEMA Design N rating meets industry standards for safety and efficiency.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and protection from environmental factors
- Single Phase motor design for simplified installation and reduced complexity
- Capacitor-Start motor design for efficient starting and reduced energy consumption
Top product applications:
- Chemical Processing
- Food Processing
- Pharmaceutical Manufacturing
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.8/6.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.63
- Package Width: 10.63
- Package Height: 11.25
- Package Weight: 32.00
Product info last updated on February 21, 2026 6:27pm UTC
Category: Motors
