Saw Motor, 1-1/2 HP, 3450 RPM, 115/230V MPN:120925.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3410136
Saw Motor, 1-1/2 HP, 3450 RPM, 115/230V

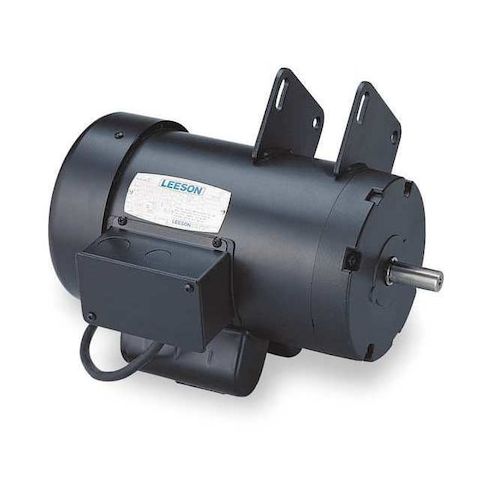

Get high-performance power with the Leeson 1-1/2 HP saw motor, designed for demanding applications in woodworking, metalworking, and other industries. This single-phase motor features a capacitor-start design for efficient operation and a totally enclosed fan-cooled (TEFC) enclosure for durability in harsh environments. With a maximum ambient temperature of 40°C and a continuous duty cycle, this motor can handle extended use. Its compact size and CWSE shaft rotation make it ideal for use in a variety of applications, including table saws, miter saws, and other power tools. Order now and experience the reliability and efficiency of Leeson's high-quality motors.
Top product features:
- Totally Enclosed Fan Cooled motor design for improved durability and protection from environmental factors
- Single Phase motor design with Capacitor-Start for efficient and reliable operation
- Continuous duty cycle for uninterrupted power and performance
Top product applications:
- Table Saw
- Wood Router
- Band Saw
Power Tool Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, 115/230V AC Voltage, Full Load Amps 20.0/10.0 A, 143Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 13.80
- Package Height: 13.80
- Package Weight: 45.50
Product info last updated on February 6, 2026 3:42pm UTC
Category: Motors
