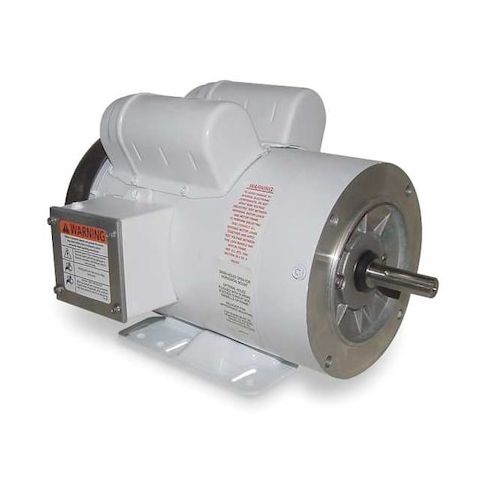

Washdown Mtr, Cap Strt, TEFC, 1 HP, 1725 rpm MPN:056C17W15328
Washdown Mtr, Cap Strt, TEFC, 1 HP, 1725 rpm
This Leeson Washdown Motor is designed for use in harsh environments where water and dust are present. Its totally enclosed fan-cooled (TEFC) design and NEMA 4X rating make it suitable for applications such as washdown stations, food processing, and chemical plants. The motor's capacitor-start design provides efficient operation and long lifespan. With a 1 HP rating and 1725 RPM, it is ideal for applications requiring moderate power. Its compact size and lightweight design make it easy to integrate into existing systems, while its continuous duty cycle ensures reliable operation in demanding environments.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor cooling and reduced maintenance
- Capacitor-Start motor design for efficient and reliable operation
- Continuous duty cycle for high usage and demanding applications
Top product applications:
- Industrial laundry equipment
- Food processing machinery
- Chemical processing plants
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.8/6.4 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.16
- Package Width: 9.20
- Package Height: 8.38
- Package Weight: 34.00
Product info last updated on February 28, 2026 5:16pm UTC
Category: Motors
