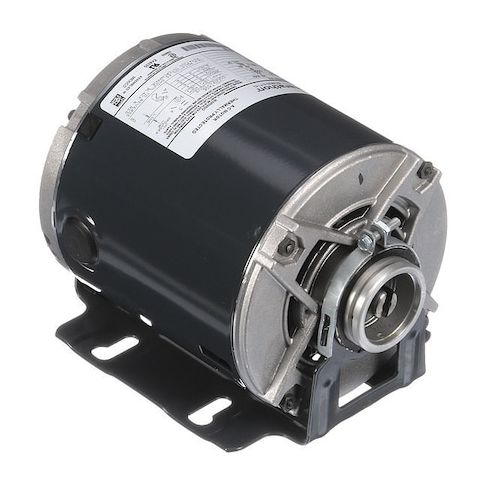

Carbonator Pump Motor, Cradle Base Mounting, 1/3 HP, 1, 725 Nameplate RPM, 48Y Frame MPN:5KH32GNB811X
The Marathon Motors Carbonator Pump Motor is a reliable and efficient solution for beverage dispensing applications in industrial settings. This compact motor maintains consistent fluid pressure and flow rates, ensuring optimal performance in high-demand environments. Its single-phase power supply makes it suitable for residential or light commercial use, while its CE Mark, CSA, and UL Recognized certifications guarantee quality, safety, and efficiency. With its high horsepower and ball motor bearings, this motor provides a long operational lifespan and efficient performance, making it an ideal choice for applications where continuous duty cycles are required.
Top product features:
- High horsepower (1/3 HP) provides greater capacity to drive pneumatic tools efficiently.
- Ball Motor Bearings reduce friction between moving parts, enhancing operational lifespan.
- Auto Thermal Protection prevents overheating by automatically shutting down when excessive heat is detected.
Top product applications:
- Carbonator Pump Motor for Beverage Dispensing Applications
- Close-Coupled Pump Motor for Industrial Settings
- Industrial Compressor Motor for High-Demand Applications
The MARATHON MOTORS - 5KH32GNB811X is a Carbonator Pump Motor, a specialized type of close-coupled pump motor designed for beverage dispensing applications. This compact and efficient motor plays an essential role in maintaining consistent fluid pressure and flow rates in industrial settings. It features a split-phase motor design that influences its efficiency, starting torque, and power factor. The single-phase power supply makes it suitable for residential or light commercial use. Its open dripproof enclosure provides cooling while offering some protection against dust and moisture.
Key Features:
• Certified by CE Mark, CSA, UL Recognized standards ensuring quality, safety, efficiency.
• Motor Service Factor of 1 indicating the capacity to operate over standard output without overheating.
• Can function optimally up to Max Ambient Temp.: 40 Degrees C.
• Full Load Amps: 5.6-5.5/2.8-2.7 indicating maximum current drawn when operating at full capacity.
• High horsepower (HP: 1/3) providing greater capacity to drive pneumatic tools efficiently.
• Ball Motor Bearings reducing friction between moving parts enhancing operational lifespan.
• Nameplate RPM:1725 specifying maximum speed at which the compressor's motor can operate
• Voltage Compatibility with various electrical inputs (115/200V AC -240V AC).
• Auto Thermal Protection preventing overheating by automatically shutting down when excessive heat is detected
• Motor Shaft Rotation: CW/CCW ensuring proper operation with specific industrial applications
• Sturdy steel frame (Frame:48Y) determining compatibility with various types of compressors
• Continuous Duty Cycle allowing non-stop operation for optimal efficiency in high-demand settings
• Nominal Efficiency of 62% indicating effective removal of contaminants from the air
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.63
- Package Width: 6.94
- Package Height: 7.50
- Package Weight: 14.00
