BrakeMotor, 2hp, 1745RPM, 230/460VAC, 145TC MPN:122253.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G307353912

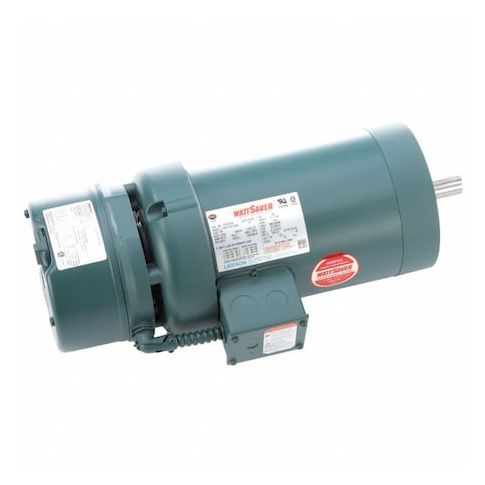

BrakeMotor, 2hp, 1745RPM, 230/460VAC, 145TC
The Leeson BrakeMotor is a reliable and efficient solution for applications requiring constant torque and braking power. Suitable for use in a variety of industries, this 2hp motor offers a high nameplate RPM of 1745 and a compact 145TC frame size. Its totally enclosed air-over design provides protection from dust and moisture, while its continuous duty cycle makes it ideal for applications with high usage rates. The motor's 230/460VAC rating allows for flexibility in system design, and its 1.15 service factor ensures reliable operation in demanding environments. Perfect for applications such as conveyor systems, hoists, and winches.
Top product features:
- Three-Phase Design
- Totally Enclosed Air-Over Enclosure
- Continuous Duty Cycle
Top product applications:
- Pumps and compressors
- Conveyor systems
- Material handling equipment
Brake Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, 6.0-5.8/2.9 A Full Load Amps, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.30
- Package Width: 11.30
- Package Height: 11.10
- Package Weight: 53.70
Product info last updated on February 13, 2026 3:20pm UTC
Category: Motors
