Washdown Mtr, Cap Strt, TEFC, 2 HP, 1740 rpm MPN:056B17W15330
Washdown Mtr, Cap Strt, TEFC, 2 HP, 1740 rpm

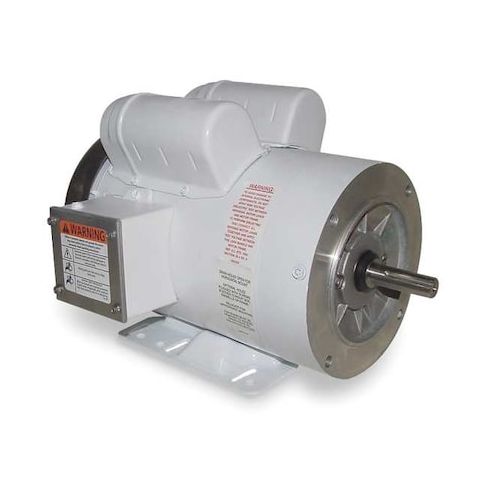

This 2 HP Washdown Motor from Leeson is designed for use in harsh environments, featuring a totally enclosed fan-cooled (TEFC) design and a nameplate RPM of 1740. Suitable for single-phase applications, it offers a capacitor-start/run design for efficient operation. With a maximum ambient temperature of 40°C and a continuous duty cycle, this motor is ideal for use in food processing, chemical handling, and other industries where cleanliness and reliability are crucial. Its compact size and durable construction make it a versatile choice for a wide range of applications, including conveyor systems, pumps, and mixers.
Top product features:
- Totally Enclosed Fan Cooled design for dust and moisture protection
- Continuous duty cycle for long-term operation
- Capacitor-Start/Run motor design for efficient starting and running performance
Top product applications:
- Food Processing Equipment
- Pump and Pumping Systems
- Water Treatment Plants
Washdown Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 20.0/10.0 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.66
- Package Width: 10.55
- Package Height: 8.64
- Package Weight: 50.00
Product info last updated on March 2, 2026 10:37pm UTC
Category: Motors
