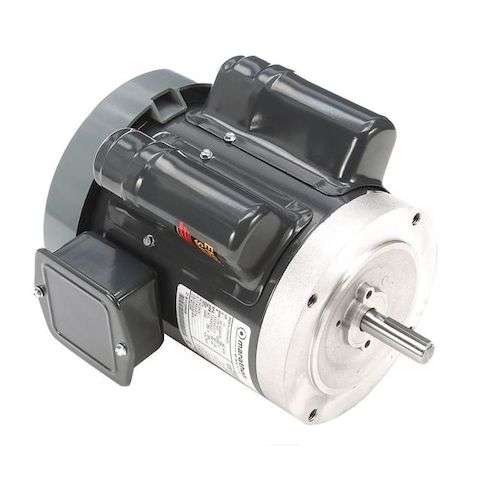

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 100-120/200-240V AC Voltage, 56C Frame MPN:5KCR46MN0093
Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 100-120/200-240V AC Voltage, 56C Frame
The Leeson Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 100-120/200-240V AC environments, this motor operates at 1,725 RPM and delivers 1/2 hp of power. Its capacitor-start/run design provides a high level of efficiency and performance, making it ideal for continuous duty cycles. The motor's totally enclosed fan cooled design ensures optimal cooling and protection from the elements. With a service factor of 1.25 and a maximum ambient temperature of 40°C, this motor is perfect for use in industrial, commercial, and residential settings where reliability and efficiency are paramount.
Top product features:
- Totally Enclosed Fan Cooled design
- Capacitor-Start/Run motor design for efficient operation
- Usable at 200V and 100-120/200-240V AC voltage for flexibility
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 100-120/200-240V AC, Full Load Amps 5.6/2.8 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.14
- Package Width: 10.19
- Package Height: 9.50
- Package Weight: 27.00
