DC Permanent Magnet Motor, 145TC MPN:128000.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G300829674

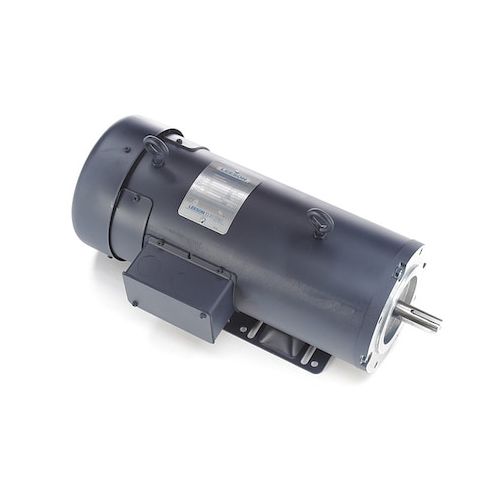

DC Permanent Magnet Motor, 145TC
This 1.5 HP Permanent Magnet DC Motor from Leeson is designed for reliable and efficient operation in a variety of applications. With its continuous duty cycle and totally enclosed fan-cooled design, it can withstand demanding tasks in harsh environments. Suitable for use in conveyor systems, material handling equipment, and other industrial applications, this motor offers a compact and durable solution. Its high torque output and long lifespan make it an ideal choice for applications requiring consistent performance and minimal maintenance. Its compact size and weight make it easy to integrate into existing systems.
Top product features:
- Permanent Magnet DC motor design provides a consistent and reliable source of power.
- Totally Enclosed Fan-Cooled motor enclosure design protects the motor from dust and debris, ensuring optimal performance.
- Continuous duty cycle allows for uninterrupted operation, making it suitable for applications requiring extended runtime.
Top product applications:
- Material Handling Equipment
- Conveyor Systems
- Automotive Lifts
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1 1/2 HP, Nameplate RPM 1,750, Voltage 180V DC, 7.5 A Full Load Amps, 145TC Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Removable Base No, Shaft Dia. 7/8 in, Shaft Length 2 1/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.50
- Package Width: 12.50
- Package Height: 12.00
- Package Weight: 53.00
Product info last updated on February 11, 2026 10:44am UTC
Category: Motors
