WashdownMotor, 2hp, 1745RPM, 230/460VAC MPN:119495.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G300722982

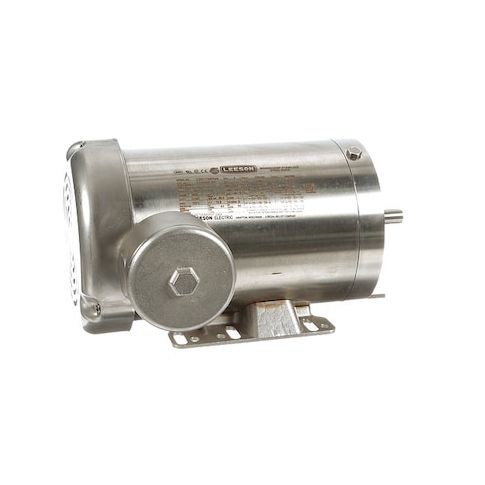

WashdownMotor, 2hp, 1745RPM, 230/460VAC
This 2hp three-phase washdown motor from Leeson is designed for demanding applications in food processing, pharmaceutical, and other industries where high cleanliness is required. Its totally enclosed fan-cooled design and NEMA Design B rating ensure efficient operation and long motor life. The motor's continuous duty cycle and 1.2 service factor make it suitable for high-demand applications. With a 1745RPM nameplate speed and 5.8/2.9A full load amps, this motor provides reliable power for pumps, mixers, and other equipment. Its compact 56HC frame and CW/CCW rotation make it a versatile choice for a wide range of washdown applications.
Top product features:
- Two-phase operation
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- Pump installation in chemical processing facilities
- High-pressure washdown equipment in food processing plants
- Industrial water treatment systems
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 56HC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.94
- Package Width: 13.06
- Package Height: 12.88
- Package Weight: 63.00
