WashdownMotor, 1-1/2hp, 3510RPM, 230/460VAC MPN:191488.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G300722951
WashdownMotor, 1-1/2hp, 3510RPM, 230/460VAC

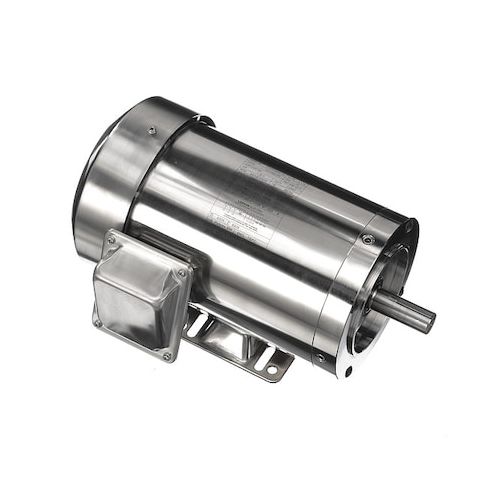

This 1.5 horsepower washdown motor from Leeson is designed for demanding applications in harsh environments. With a three-phase design and 3510 RPM, it provides reliable operation in washdown areas, food processing, and other industries where cleanliness is critical. The motor's totally enclosed fan-cooled design and NEMA Design B rating ensure efficient cooling and long motor life. Its compact size and removable base make it easy to install and maintain. Suitable for continuous duty cycles, this motor is perfect for applications requiring high-speed operation and resistance to water and dust. It's ideal for use in food processing, breweries, and other industries.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing Equipment
- Pulp and Paper Machinery
- Chemical Processing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,510 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.8/1.9 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 11.13
- Package Height: 10.25
- Package Weight: 45.00
Product info last updated on January 19, 2026 8:18pm UTC
Category: Motors
