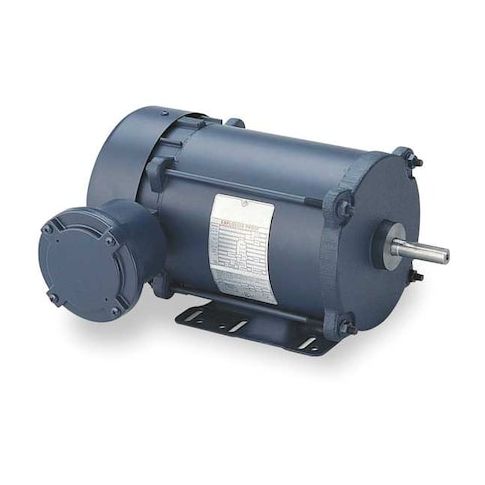

Hzrdus Loc Mtr, Cap Strt, TEFC, 1-1/2hp, T3B MPN:056B17G15506
Hzrdus Loc Mtr, Cap Strt, TEFC, 1-1/2hp, T3B
The Leeson Hzrdus Loc Mtr is a reliable and efficient motor designed for hazardous locations. With a single-phase capacitor-start/run design, it provides a cost-effective solution for a variety of applications. Suitable for use in Class I, Class II, and T3B environments, this motor can operate in temperatures up to 40°C and withstand continuous duty cycles. Its totally enclosed fan-cooled design ensures long-lasting performance and minimal maintenance. Ideal for use in industrial settings, the Hzrdus Loc Mtr is perfect for applications such as oil and gas, chemical processing, and food and beverage manufacturing.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and clean operating environment.
- Hazardous Location certification allows the motor to be used in areas with explosive or flammable gases.
- Capacitor-Start/Run motor design enables efficient and reliable operation.
Top product applications:
- Industrial laundry equipment
- Pump stations in hazardous locations
- Material handling equipment in hazardous environments
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 8.1-7.8 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.08
- Package Width: 8.20
- Package Height: 7.11
- Package Weight: 53.00
Product info last updated on January 21, 2026 10:49am UTC
Category: Motors
