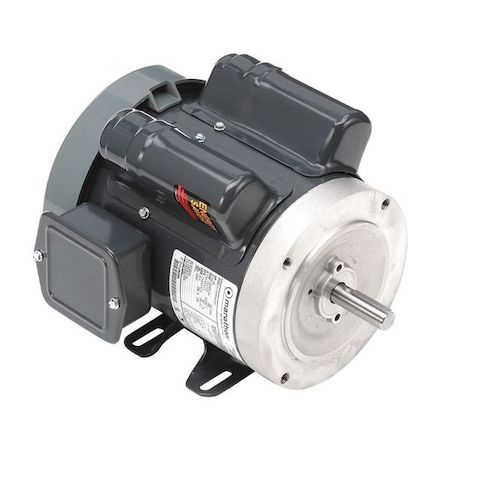

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 100-120/200-240V AC Voltage, 56C Frame MPN:5KCR46MN0055Y
Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 100-120/200-240V AC Voltage, 56C Frame
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 100-120/200-240V AC, Full Load Amps 5.6/2.8 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.14
- Package Width: 10.19
- Package Height: 9.50
- Package Weight: 29.00
Product info last updated on February 2, 2026 2:55pm UTC
Category: Motors
