Vector Motor, 3.0 lb-ft, 1 HP, 230/460 V MPN:143THTR5326

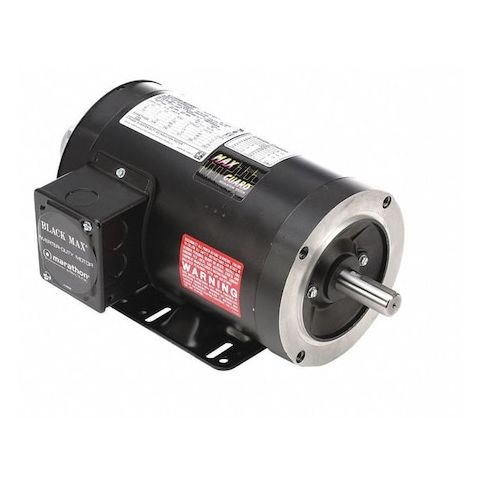

Vector Motor, 3.0 lb-ft, 1 HP, 230/460 V
Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Torque 3 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.88
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 41.00
Product info last updated on February 9, 2026 8:05pm UTC
Category: Motors
