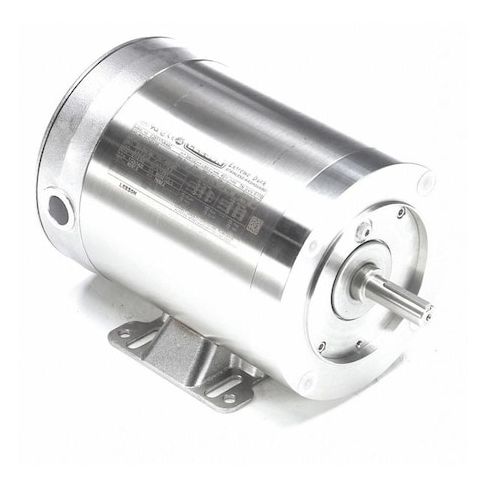

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1725 rpm MPN:117121.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2785054
Washdown Motor, 3 Ph, TENV, 3/4 HP, 1725 rpm
This 3-phase, totally enclosed non-ventilated (TENV) washdown motor from Leeson is designed for harsh environments and high-temperature applications. With a 3/4 HP rating and 1725 RPM, it provides reliable performance in demanding conditions. Suitable for use in 208V and 230/460V AC systems, this motor features a 56C frame and meets NEMA Design B standards. Its compact design and durable construction make it ideal for various applications, including food processing, chemical handling, and pharmaceutical manufacturing. The motor's continuous duty cycle and CW/CCW shaft rotation ensure efficient operation and flexibility in a wide range of industries.
Top product features:
- Three Phase Design
- Totally Enclosed Non-Ventilated (TENV) Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing Equipment
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.4/1.2 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 11.20
- Package Height: 11.40
- Package Weight: 46.70
