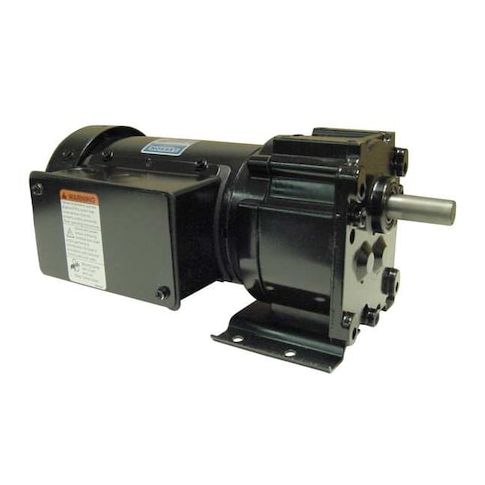

AC Gearmotor, 391 in-lb Max. Torque, 16 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase MPN:M1145122.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2728284
AC Gearmotor, 391 in-lb Max. Torque, 16 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase
This AC gearmotor from Leeson is a reliable and efficient solution for various applications, including inverter duty operations. With a maximum torque of 391 in-lb and a nameplate RPM of 16, it provides precise control and smooth operation. The motor's totally enclosed fan-cooled design ensures durability and longevity, while its continuous duty class and Class 9 AGMA gear class guarantee reliable performance. Suitable for horizontal or vertical mounting, this gearmotor is ideal for applications such as conveyor systems, packaging machines, and material handling equipment, where precise control and high torque are required.
Top product features:
- Totally Enclosed Fan-Cooled motor enclosure for increased protection and reliability
- Continuous duty motor for long-term operation without overheating
- 103:1 gear ratio for high torque output at low RPM, ideal for applications requiring precise speed control
Top product applications:
- Inverter Duty
- Continuous Duty
- Class 9 AGMA Gear
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 16 RPM, Maximum Torque 391 in-lb, Overhung Load Capacity 237 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230V AC, Inverter Rated Yes, Gear Ratio 103:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class F, Motor Duty Class Continuous, AGMA Gear Class Class 9, Application Inverter Duty
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.80
- Package Width: 7.90
- Package Height: 6.80
- Package Weight: 16.75
