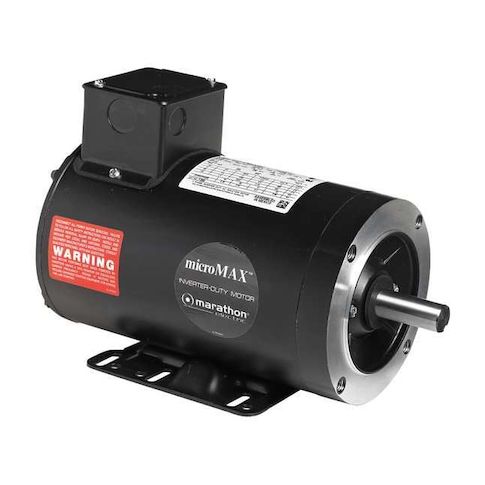

Vector Motor, 0.8 lb-ft, 1/4 HP, 230 V MPN:056H17T2011
Vector Motor, 0.8 lb-ft, 1/4 HP, 230 V
The Leeson Vector Motor is a reliable and efficient solution for a wide range of applications, including industrial automation, material handling, and HVAC systems. With a high torque-to-weight ratio and a compact design, this motor is ideal for use in tight spaces where traditional motors may not fit. The motor's continuous duty cycle and NEMA Design A rating ensure reliable performance in demanding environments. Its 1,000:1 speed range and 5,400 RPM max speed make it suitable for various applications, from low-speed conveyor systems to high-speed fans and blowers. This motor is a versatile and cost-effective solution for many industrial needs.
Top product features:
- Three Phase Design
- Torque of 0.8 ft-lb
- Speed Range of 1,000:1
Top product applications:
- Pumps
- Conveyor systems
- Fans
Vector Motor, Three Phase, Motor Design 3-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.0 A, 56C Frame, Torque 0.8 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.06
- Package Width: 6.75
- Package Height: 6.62
- Package Weight: 17.00
