Hzrdus Loc Mtr, Splt Ph, TENV, 1/4 HP, T3B MPN:056S17E15501
Hzrdus Loc Mtr, Splt Ph, TENV, 1/4 HP, T3B

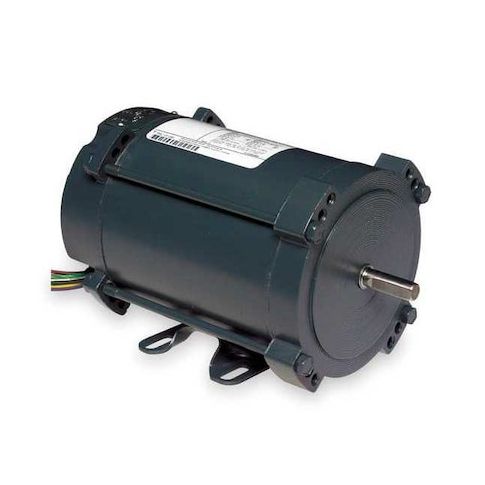

The Leeson Hzrdus Loc Mtr is a reliable and efficient hazardous location motor designed for use in harsh environments. With a single-phase, split-phase design and 1/4 HP rating, it's perfect for applications such as oil and gas, chemical processing, and pharmaceutical manufacturing. The motor's totally enclosed non-ventilated (TENV) design ensures safe operation in areas with explosive atmospheres, while its 1,725 RPM nameplate speed and continuous duty cycle make it suitable for a range of applications. Its compact size and easy installation make it a convenient choice for industries requiring high-reliability motors.
Top product features:
- Single Phase Design
- Totally Enclosed Non-Ventilated Enclosure
- Continuous Duty Cycle
Top product applications:
- Industrial control panels for hazardous locations
- Pumps and sump systems in chemical plants
- Fans and blowers in garages and workshops
Hazardous Location Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.4 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.97
- Package Width: 7.79
- Package Height: 6.81
- Package Weight: 33.00
Product info last updated on January 31, 2026 5:31am UTC
Category: Motors
