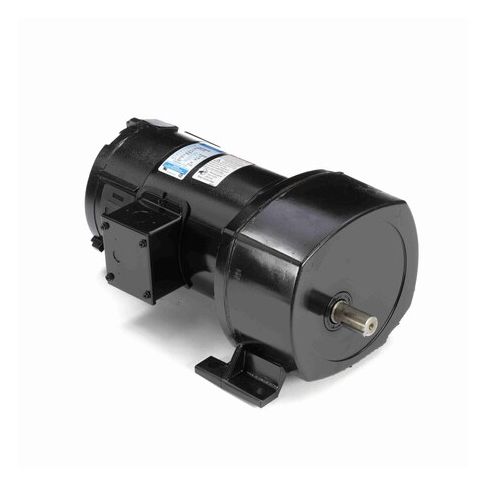

Parallel Shaft Gearmotors, 90V MPN:108702.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2499214
Parallel Shaft Gearmotors, 90V
Power your applications with the Leeson 0.25 Hp DC Gearmotor, delivering reliable performance at 18 RPM and 90V. Designed for efficiency and durability, this motor features a 48Y frame and is built in the US. With a compact design and low weight, it's ideal for use in robotics, automation, and other applications where precision and control are crucial. Its high torque output makes it perfect for tasks that require a strong and consistent force, such as material handling and conveyor systems. Order now and experience the reliability and efficiency of Leeson's DC gearmotor technology.
Top product features:
- 0.25 Hp Dc Gearmotor provides a low horsepower output suitable for a variety of applications.
- The motor has a speed of 18 Rpm, allowing for precise control and efficient operation.
- The 90 V DC gearmotor design enables efficient operation in a range of voltage conditions.
Top product applications:
- Pumps and water treatment systems
- Material handling equipment
- Automotive and industrial conveyor systems
Parallel Shaft Gearmotors, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 18 RPM, Maximum Torque 750 in-lb, Starting Torque 750 in-lb, Overhung Load Capacity 700 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Gear Ratio 95:1, Input Horsepower 1/4 hp, Motor Insulation Class F, Efficiency 61.1 Percent, Output Shaft Diameter 3/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 10.80
- Package Height: 11.40
- Package Weight: 34.45
