Parallel Shaft Gearmotors, 90V MPN:108707.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2482758

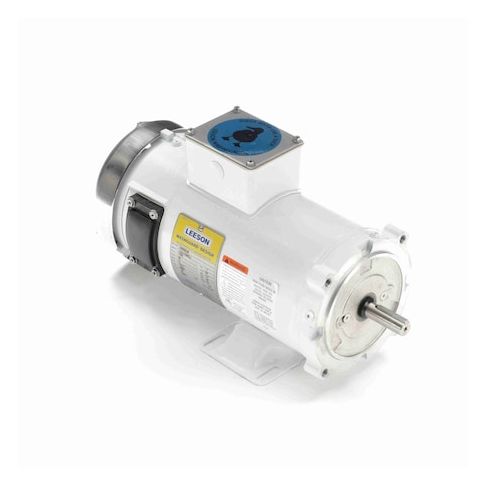

Parallel Shaft Gearmotors, 90V
This 0.50 Hp DC gearmotor from Leeson is a reliable and efficient solution for a wide range of applications. With a speed of 18 RPM and a voltage of 90V, it's ideal for use in industrial settings where precise control is necessary. The motor's compact design and durable construction make it perfect for applications such as conveyor systems, packaging machinery, and material handling equipment. Its high torque and low speed make it well-suited for tasks that require a high level of precision and control, such as in textile or food processing industries. It ships quickly and is available in single unit quantities.
Top product features:
- 0.50 Hp Dc Gearmotor provides 0.5 horsepower of power output.
- Operates at a speed of 18 revolutions per minute.
- Uses a DC motor with a gear reduction mechanism for efficient torque delivery.
Top product applications:
- Conveyor systems for small to medium-sized manufacturing lines
- Material handling equipment for warehouses and distribution centers
- Automated packaging machines for food and pharmaceutical industries
Parallel Shaft Gearmotors, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Fan-Cooled, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 18 RPM, Maximum Torque 1,112 in-lb, Starting Torque 1,112 in-lb, Overhung Load Capacity 700 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Gear Ratio 95:1, Input Horsepower 1/2 hp, Motor Insulation Class F, Efficiency 66.9 Percent, Output Shaft Diameter 3/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.00
- Package Height: 11.50
- Package Weight: 44.00
Product info last updated on February 5, 2026 4:45am UTC
Category: Motors
