50 Hz Mtr, 1 1/2hp, 1425, 110/220v, 56H, TEFC MPN:113929.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2444556

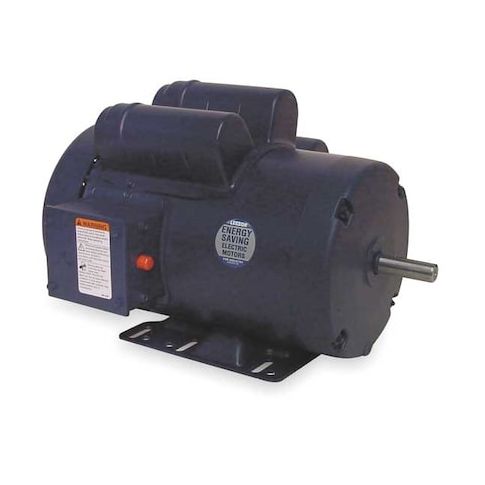

50 Hz Mtr, 1 1/2hp, 1425, 110/220v, 56H, TEFC
The Leeson 50 Hz Mtr is a versatile and reliable single-phase motor designed for a wide range of applications. With a 1 1/2hp capacity and 56H frame, it can handle demanding tasks with ease. This TEFC motor is perfect for use in industrial settings, such as manufacturing facilities, warehouses, and construction sites, where a continuous duty cycle is required. Its compact design and durable construction make it an ideal choice for use in tight spaces. With a maximum ambient temperature of 40 degrees C, it can operate in a variety of environments, making it a reliable and efficient solution for many applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Manual thermal protection for user control and safety
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Pump application in a commercial setting
- Fan application in a residential HVAC system
- Conveyor application in a small manufacturing plant
50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 17.2/8.6 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.80
- Package Height: 13.90
- Package Weight: 47.50
Product info last updated on February 4, 2026 3:51am UTC
Category: Motors
