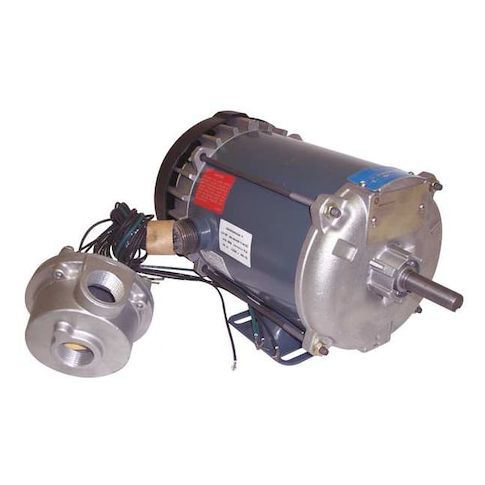

Hazardous Loc Mtr, 3 Ph, TEFC, 1/3 HP, T3B MPN:056T11G15515
Hazardous Loc Mtr, 3 Ph, TEFC, 1/3 HP, T3B
This hazardous location motor is designed for use in areas where flammable gases or vapors are present, such as oil refineries, chemical plants, and mines. The TEFC (Totally Enclosed Fan Cooled) design provides a safe and reliable operation in harsh environments. With a 1/3 HP rating and 1,140 RPM, this motor is suitable for applications requiring moderate power and speed. Its compact 56 frame size makes it ideal for space-constrained installations. The motor's continuous duty cycle and 1.15 service factor ensure efficient operation, while its Class B insulation and T3B temperature rating provide added protection against overheating.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Industrial control panels in hazardous locations such as oil rigs or chemical plants
- Pumps in hazardous environments such as mining or refineries
- Fans in hazardous areas such as power plants or factories with explosive atmospheres
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.5-1.5/0.75 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.94
- Package Width: 8.20
- Package Height: 7.35
- Package Weight: 31.40
Product info last updated on January 27, 2026 12:52pm UTC
Category: Motors
