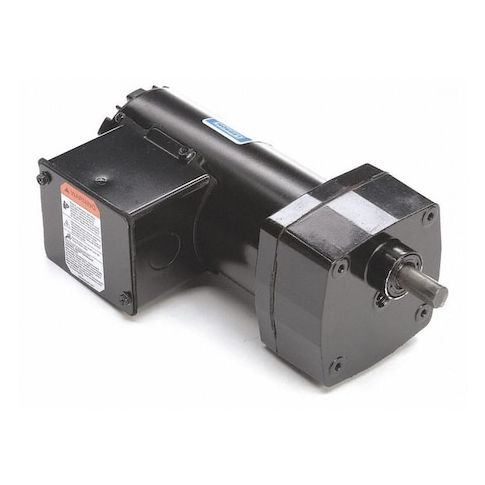

AC Gearmotor, 24 in-lb Max. Torque, 142 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase MPN:M1125284.00
AC Gearmotor, 24 in-lb Max. Torque, 142 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 142 RPM, Maximum Torque 24 in-lb, Overhung Load Capacity 155 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230V AC, Inverter Rated Yes, Gear Ratio 12:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class F, Motor Duty Class Continuous, AGMA Gear Class Class 9, Application Inverter Duty
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 40
- Unit of Measure: EA
- Package Length: 41.25
- Package Width: 30.72
- Package Height: 26.76
- Package Weight: 360.00
Product info last updated on February 16, 2026 7:54pm UTC
Category: Motors
