Washdown Motor, 3 Ph, TEFC, 2 HP, 3490 rpm MPN:121881.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2169727

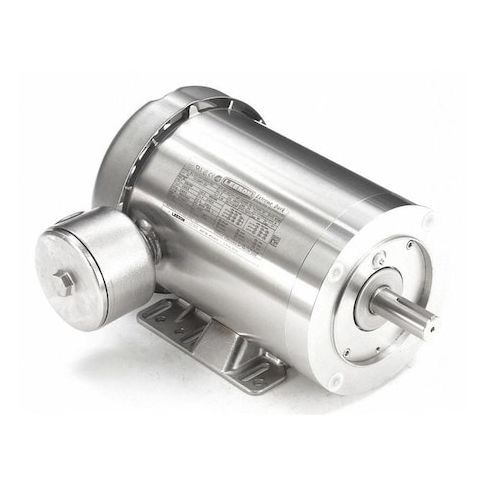

Washdown Motor, 3 Ph, TEFC, 2 HP, 3490 rpm
This 2 HP, 3-phase, TEFC washdown motor from Leeson is designed for high-temperature and high-humidity environments, making it ideal for use in food processing, chemical processing, and pharmaceutical applications. Its totally enclosed fan-cooled design and Class F insulation ensure efficient operation and extended motor life. With a service factor of 1.15 and a continuous duty cycle, this motor can handle demanding tasks. Its compact design and CW/CCW rotation make it suitable for a wide range of applications, including conveyor systems, pumps, and mixers. Its rugged construction and reliable performance make it a trusted choice for industries that require high-performance motors.
Top product features:
- Totally Enclosed Fan Cooled design
- Three-Phase, 2 hp HP motor design
- Continuous Duty Cycle operation
Top product applications:
- Food Processing
- Water Treatment Plants
- Chemical Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 14.00
- Package Height: 14.00
- Package Weight: 53.00
Product info last updated on March 5, 2026 8:23am UTC
Category: Motors
