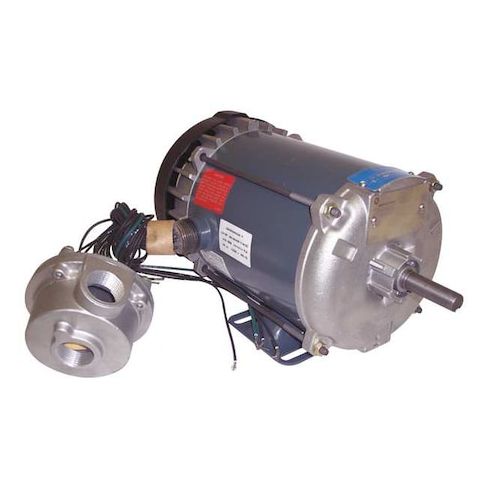

Hazardous Loc Mtr, 3 Ph, TEFC, 3/4 HP, T3B MPN:056T17G15551
Hazardous Loc Mtr, 3 Ph, TEFC, 3/4 HP, T3B
This Leeson Hazardous Location Motor is designed for use in harsh environments where safety and reliability are paramount. With a three-phase design and 3/4 HP power, it can handle demanding applications such as oil and gas, chemical processing, and pharmaceutical manufacturing. The motor's totally enclosed fan-cooled design and Class B insulation ensure efficient operation and protection from overheating. Its hazardous location rating makes it ideal for use in areas where explosive gases or dust are present. With a continuous duty cycle and high efficiency, this motor is a reliable choice for critical applications.
Top product features:
- Three Phase Operation
- Totally Enclosed Fan Cooled Design
- Continuous Duty Cycle
Top product applications:
- Industrial settings with high risk of explosion or fire
- Oil and gas refineries
- Chemical manufacturing plants
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.0/1.5 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.20
- Package Width: 11.20
- Package Height: 11.00
- Package Weight: 29.00
Product info last updated on March 1, 2026 2:53am UTC
Category: Motors
