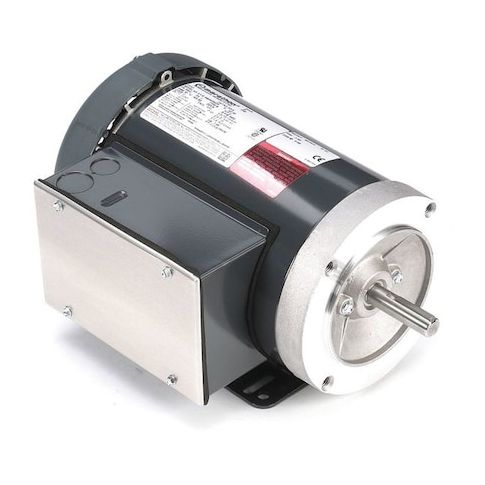

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56HC Frame MPN:056B34F5327
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56HC Frame
This 2 hp Capacitor-Start/Run General Purpose Motor from Leeson is a reliable and efficient solution for various applications. Suitable for use in 115/208-230V AC voltage environments, it provides consistent performance in single-phase systems. Its 56HC frame design ensures compact installation and easy maintenance. Perfect for continuous duty cycles in environments up to 40°C, this motor is ideal for applications such as pumps, fans, and conveyor systems. With a service factor of 1.15, it can handle demanding tasks while minimizing downtime. Its totally enclosed fan-cooled design provides added protection and reduces noise levels, making it a great choice for a wide range of industrial and commercial applications.
Top product features:
- Totally Enclosed Fan Cooled design provides improved motor protection and reduced maintenance.
- Continuous Duty Cycle allows for uninterrupted operation.
- 60 Hz operation ensures compatibility with standard household electrical systems.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 16.6/9.4-8.3 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 38.00
Product info last updated on January 31, 2026 4:07am UTC
Category: Motors
