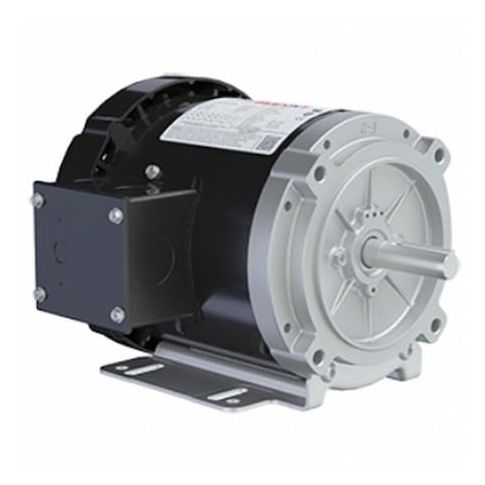

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V Voltage, 1, 725 Nameplate RPM MPN:056T17F15950
Free Shipping
In Stock
This 3/4 HP three-phase general purpose motor from Leeson is designed for a wide range of applications, including industrial and commercial settings. With a totally enclosed fan cooled motor enclosure and ball bearings, it provides reliable and efficient operation in harsh environments. The motor's high service factor and thermal protection enable it to handle demanding loads, while its reversible shaft rotation and 75.5% nominal efficiency make it a cost-effective choice. Suitable for use in fans, pumps, and other equipment, this motor is a versatile and dependable solution for various industrial and commercial applications.
Top product features:
- Three-phase design for efficient operation in industrial environments
- Totally enclosed fan cooled motor enclosure for reliable performance in harsh conditions
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial machinery such as textile machines and conveyor belts
- Pumps and other hydraulic equipment
- Fans and blowers for ventilation and air circulation
The LEESON - 056T17F15950 is a General Purpose Motor, a type of 3-phase AC motor widely used in industrial and commercial settings. This versatile tool converts electrical energy into mechanical energy to operate various types of machinery, from manufacturing lines to HVAC systems. It's designed for continuous duty cycle operation, indicating its potential efficiency and endurance in demanding applications.
Key Features of the LEESON - 056T17F15950 General Purpose Motor:
- Duty Cycle: Capable of continuous operation within specified conditions, which may contribute to operational efficiency and endurance.
- Frame: The 56C frame size conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: Draws maximum current between 2.9-3.0/1.5 A when operating at full capacity, crucial for determining power supply requirements.
- Horsepower (HP): Has an output of 45720 HP, suitable for a range of applications depending on specific requirements.
- Inverter Rated: Compatible with being powered by a variable frequency drive which could allow for control over speed and torque.
- Inverter Rating: Operates optimally at a maximum frequency of 10:1 when powered by an inverter.
- Max Ambient Temp.: Rated for operation at ambient temperatures up to 40 Degrees C. Operation beyond this temperature may affect performance.
- NEMA Design: Complies with the B classification set by the National Electrical Manufacturers Association. Performance consistency may vary based on application specifics
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 24.00
