Hazardous Loc Mtr, Cap Strt, TENV, 1/4 HP MPN:5KC36PNB169
Hazardous Loc Mtr, Cap Strt, TENV, 1/4 HP

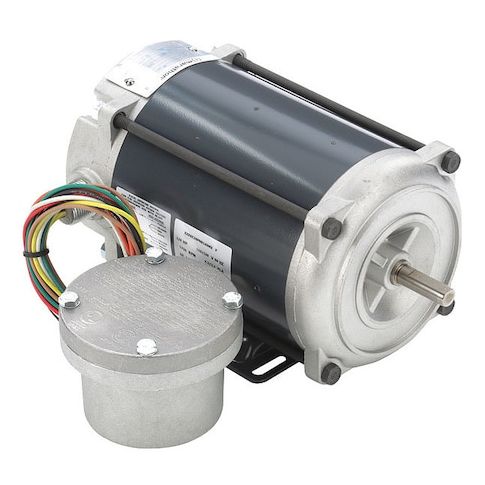

This hazardous location motor from Leeson is designed for use in areas with explosive or flammable gases and vapors. The single-phase, capacitor-start motor operates at 1,725 RPM and is rated for 1/4 HP. It's suitable for applications such as oil and gas exploration, chemical processing, and pharmaceutical manufacturing. The TENV (Totally Enclosed Non-Ventilated) design provides protection against dust and liquids, while the Class I, Class II, and T3B temperature rating ensure safe operation in extreme environments. With a continuous duty cycle, this motor is ideal for applications requiring reliable, long-term operation.
Top product features:
- Totally Enclosed Non-Ventilated (TENV) motor enclosure design provides protection from dust and moisture.
- Capacitor-start design allows for efficient starting and operation of the motor.
- Continuous duty cycle enables the motor to operate at maximum capacity for extended periods.
Top product applications:
- Industrial control panels
- Pumps and compressors in hazardous locations
- Air-handling units and ventilation systems in hazardous environments
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.2/2.1 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 9.12
- Package Weight: 24.20
Product info last updated on February 14, 2026 10:46am UTC
Category: Motors
