WashdownMotor, 3hp, 1760RPMT, 230/460VAC MPN:132196.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G206626643

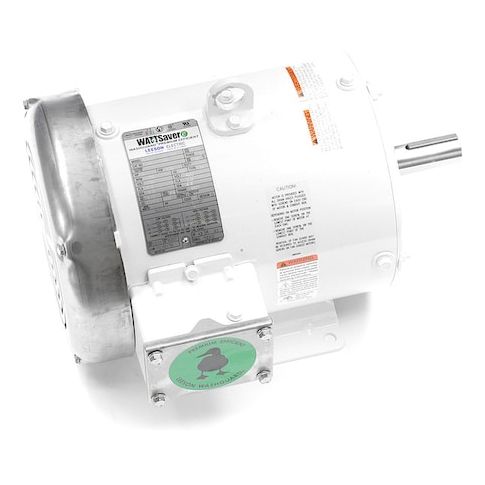

WashdownMotor, 3hp, 1760RPMT, 230/460VAC
This 3hp Washdown Motor from Marathon is designed for heavy-duty use in harsh environments, featuring a totally enclosed fan-cooled design and a rigid base for secure mounting. With a nameplate RPM of 1,760 and a voltage range of 230/460V AC, this motor is suitable for a variety of applications, including food processing, pharmaceutical manufacturing, and chemical handling. Its continuous duty cycle and NEMA Design B rating ensure reliable operation, while its compact size and lightweight design make it easy to integrate into existing systems. Ideal for use in high-temperature environments up to 40°C, this motor provides long-lasting performance.
Top product features:
- Totally Enclosed Fan Cooled design for improved environmental protection
- Three Phase motor design for efficient power distribution
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pump motor for chemical processing
- Food processing equipment motor
- Industrial wastewater treatment motor
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 7.8/3.9 A, 182T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 13.80
- Package Height: 13.90
- Package Weight: 78.00
Product info last updated on February 26, 2026 11:14am UTC
Category: Motors
