Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm MPN:117127.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2041146

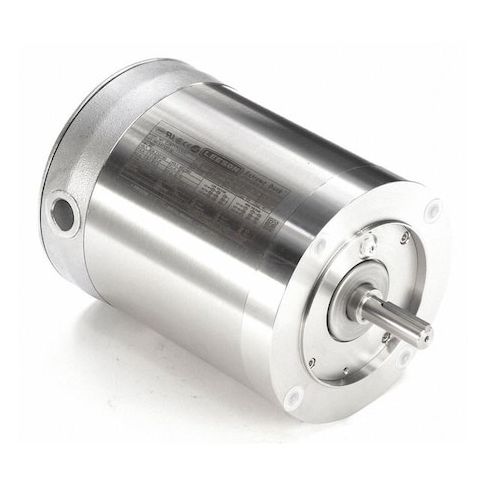

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm
This 1/2 HP, 1725 rpm washdown motor from Leeson is designed for use in harsh environments where high pressure washdowns are required. Its totally enclosed, non-ventilated (TENV) design protects against dust and water ingress, making it ideal for use in food processing, chemical plants, and other industries where cleanliness is crucial. With a continuous duty cycle and NEMA Design B rating, this motor can withstand the demands of high-usage applications. Its compact size and C-face mounting type make it easy to integrate into existing systems, providing a reliable and efficient solution for a variety of industrial applications.
Top product features:
- Three Phase Operation
- Totally Enclosed Non-Ventilated Design
- Continuous Duty Cycle
Top product applications:
- Food Processing Plants
- Pulp and Paper Mills
- Chemical Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.6/0.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 10.80
- Package Height: 11.60
- Package Weight: 41.58
Product info last updated on February 19, 2026 1:12pm UTC
Category: Motors
