Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56C Frame MPN:E100025.00

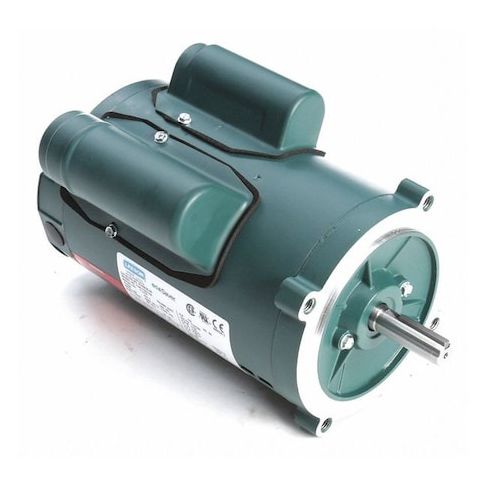

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56C Frame
This 1/2 hp capacitor-start/run motor from Leeson is a versatile and reliable general-purpose motor suitable for a wide range of applications. With a nameplate RPM of 1,725 and a voltage rating of 115/230V AC, it can be used in various settings, including residential and commercial environments. The motor's open drip-proof design and CW/CCW rotation make it easy to integrate into existing systems. Its continuous duty cycle and 1.25 service factor ensure efficient operation. Suitable for applications such as pumps, fans, and conveyors, this motor provides a cost-effective solution for demanding tasks.
Top product features:
- Capacitor-start/run design provides efficient starting and running capabilities
- Single-phase motor design allows for operation on 115/230V AC voltage
- Open drip-proof motor enclosure design protects against dust and water ingress
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.6/2.3 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 8.40
- Package Height: 9.50
- Package Weight: 21.90
Product info last updated on February 22, 2026 8:24pm UTC
Category: Motors
