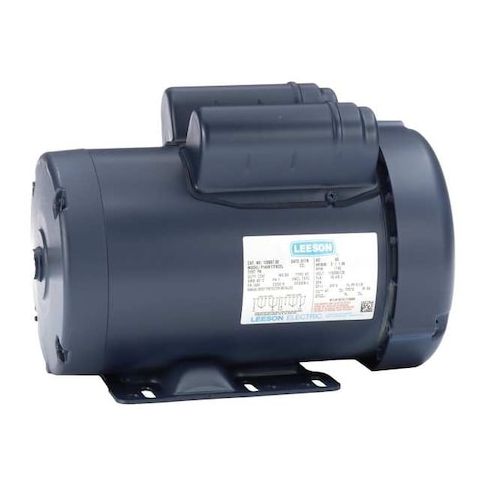

Capacitor-Start General Purpose Motor, 2 HP, 145T Frame, 115/208-230V AC Voltage MPN:120867.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G202015038
Capacitor-Start General Purpose Motor, 2 HP, 145T Frame, 115/208-230V AC Voltage
This 2 HP Capacitor-Start General Purpose Motor from Leeson is a reliable and efficient solution for various industrial applications. Suitable for continuous duty cycles, it features a durable bearing protection system and a robust exterior design. The motor is easily installed with a conduit box location and bolt circle diameter of 5 5/8 inches. Its compact size and lightweight design make it ideal for use in a range of settings, from manufacturing facilities to warehouses. With a 18-month manufacturer's warranty, this motor provides peace of mind and long-term reliability.
Top product features:
- Double Shield Bearing Protection
- Enamel Finish
- Inverter Rated No
Top product applications:
- General Application
- General Purpose Motor
- General Application
General Purpose Motor, Bearing Protection Double Shield, Body Dia. 7.7 in, Bolt Circle Dia. 5 5/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Finish Enamel, Frame 145T, Hz 60 Hz, Full Load Amps 18.4/9.2, Height 8 3/8 in, HP 2, Includes Key, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating No, Lead Length 6 in, Length Less Shaft 11 5/8 in, Manufacturers Warranty Length 18 mo, Max. Ambient Temp. 104 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 10.80
- Package Height: 11.50
- Package Weight: 46.00
Product info last updated on January 27, 2026 5:33pm UTC
Category: Motors
