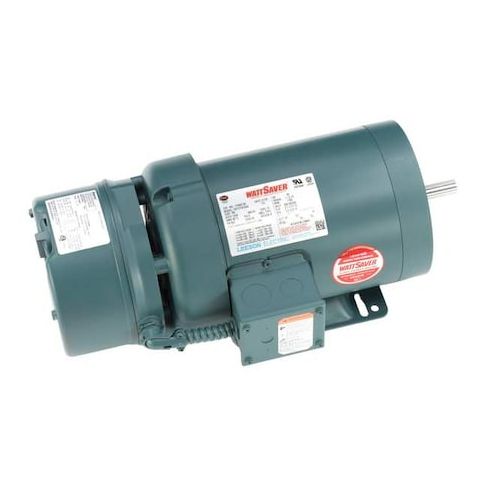

Three-Phase Brake Motor, 1 hp HP, 56C Frame, 208-230/460V AC Voltage, 1, 760 RPM Nameplate RPM MPN:119563.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G202014772
Three-Phase Brake Motor, 1 hp HP, 56C Frame, 208-230/460V AC Voltage, 1, 760 RPM Nameplate RPM
This three-phase brake motor is designed for heavy-duty applications, featuring a 1 hp output and 1,760 RPM nameplate speed. Suitable for use in a variety of settings, including manufacturing, material handling, and packaging, this motor's totally enclosed fan-cooled design ensures reliable operation in harsh environments. The motor's 56C frame and 230/460V AC voltage rating make it suitable for use in applications where high torque and speed are required. With a 1.7 A full-load amp rating and 1.15 service factor, this motor is built to withstand demanding conditions, making it an ideal choice for applications that require continuous duty operation.
Top product features:
- Three-phase motor design for efficient power usage
- Totally enclosed fan-cooled enclosure for protection against dust and moisture
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Material Handling Equipment
- Manufacturing Equipment
- Pumping Systems
Brake Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, 1.7 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.80
- Package Height: 11.50
- Package Weight: 45.90
Product info last updated on February 1, 2026 11:58am UTC
Category: Motors
