WashdownMotor, 1hp, 1750RPM, 56C, 230/460VAC MPN:191575.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G200722976
WashdownMotor, 1hp, 1750RPM, 56C, 230/460VAC

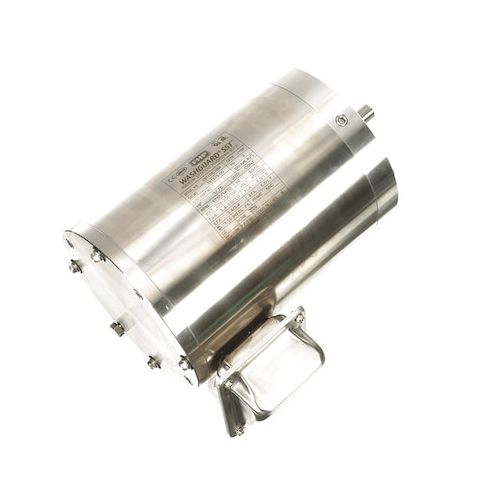

This 1hp, 1750RPM, 56C frame washdown motor from Leeson is designed for use in harsh environments where high pressure washdowns are required. Its three-phase design and totally enclosed non-ventilated enclosure make it perfect for applications such as food processing, pharmaceutical, and chemical plants where cleanliness and sanitation are paramount. The motor's continuous duty cycle and 1.2 service factor ensure reliable operation, while its manual thermal protection and Class F insulation provide added safety and durability. Suitable for use at 208V, this motor is ideal for applications requiring a high degree of cleanliness and resistance to corrosion.
Top product features:
- Three-Phase Design
- Totally Enclosed Non-Ventilated Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing
- Pump or Compressor Drive
- Water Treatment Plant
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base Yes, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.60
- Package Width: 11.80
- Package Height: 9.90
- Package Weight: 42.25
Product info last updated on February 11, 2026 10:34am UTC
Category: Motors
