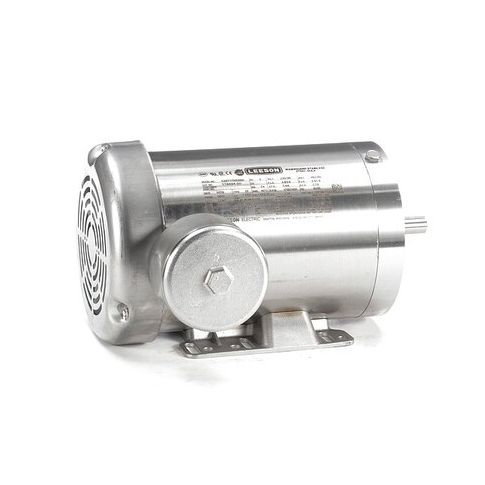

WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC MPN:119494.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G200722969
WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC
This high-performance Washdown Motor from Leeson is designed for demanding applications in harsh environments. With a 1.5 horsepower rating and 1750 RPM, it provides reliable operation in washdown areas, food processing, and other industries where high-pressure cleaning is required. The motor's totally enclosed fan-cooled design and Class F insulation ensure efficient heat dissipation and long lifespan. Its compact size and NEMA Design B rating make it easy to integrate into existing systems. Ideal for continuous duty cycles, this motor is perfect for applications such as conveyor systems, pumps, and mixers in food processing, pharmaceutical, and chemical industries.
Top product features:
- Three-Phase Motor Design
- Totally Enclosed Fan Cooled Motor Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing Equipment
- Chemical Handling Equipment
- Pump and Pump System Manufacturers
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 56HC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.94
- Package Width: 13.06
- Package Height: 12.88
- Package Weight: 59.00
