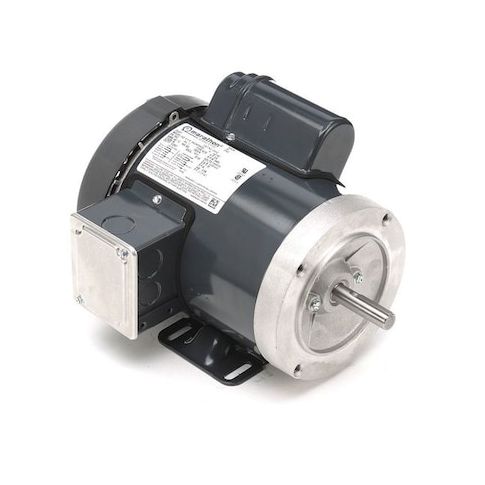

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:056C34F5302
Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame
This 3/4 hp Capacitor-Start General Purpose Motor from Leeson is a reliable and efficient solution for a variety of applications, including industrial and commercial use. Its single-phase design and capacitor-start motor make it ideal for applications that require a high starting torque. The motor's totally enclosed fan cooled design ensures a long lifespan and minimal maintenance, while its continuous duty cycle and 1.15 service factor make it suitable for demanding applications. Use it in manufacturing, material handling, and other industries where a high-performance motor is required. Its compact size and easy installation make it a convenient choice.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient operating environment
- Single Phase Motor Design allows for efficient operation on single-phase power sources
- Capacitor-Start design enables the motor to start and operate efficiently under various load conditions
Top product applications:
- Pumps and Fans
- Conveyors and Material Handling Equipment
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.6/5.3 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 9.12
- Package Weight: 28.00
Product info last updated on February 7, 2026 2:19pm UTC
Category: Motors
