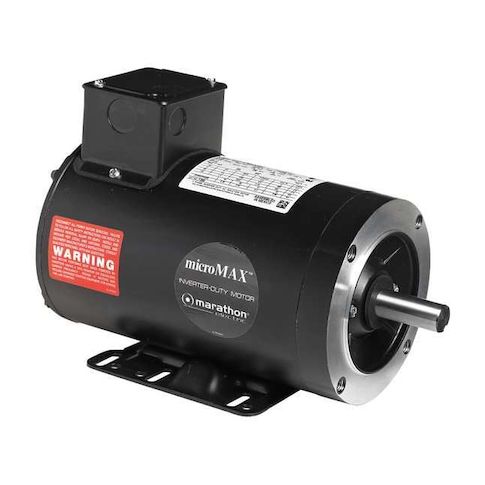

Vector Motor, 1.0 lb-ft, 1/3 HP, 230 V MPN:056H17T2013
Vector Motor, 1.0 lb-ft, 1/3 HP, 230 V
The Leeson Vector Motor is a reliable and efficient solution for various industrial applications. With a 1/3 HP rating and 1.0 lb-ft of torque, this motor is ideal for use in conveyor systems, pumps, and other machinery that requires consistent speed and torque. Its 1,725 nameplate RPM and 1,000:1 speed range make it suitable for applications where precise control is necessary. Built with a 56C frame and Class H insulation, this motor can operate in temperatures up to 104 degrees F, making it a great choice for use in a variety of environments. Its continuous duty cycle and NEMA Design A rating ensure reliable performance.
Top product features:
- Three Phase Design
- 1,725 Nameplate RPM
- 1,000:1 Speed Range
Top product applications:
- Conveyor systems
- Water treatment plants
- Pumps and compressors
Vector Motor, Three Phase, Motor Design Three-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.2 A, 56C Frame, Torque 1 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.06
- Package Width: 6.75
- Package Height: 6.62
- Package Weight: 17.00
Product info last updated on February 16, 2026 4:24am UTC
Category: Motors
