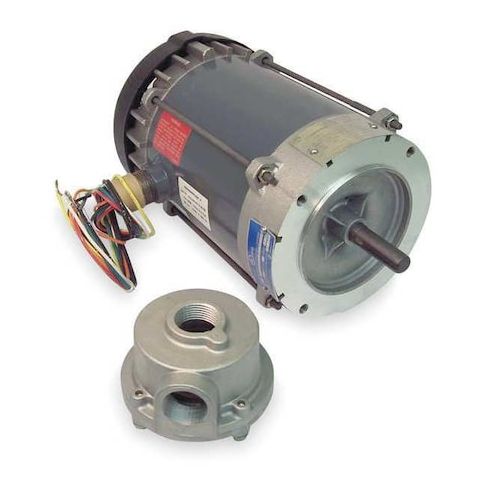

Hzrdus Loc Mtr, Cap Strt, TEFC, 3/4 HP, T3B MPN:056C17G15530
Hzrdus Loc Mtr, Cap Strt, TEFC, 3/4 HP, T3B
The Leeson Hzrdus Loc Mtr is a reliable and efficient hazardous location motor designed for use in demanding environments. With a 3/4 HP capacity and single-phase operation, it's ideal for applications requiring continuous duty cycles. The motor's capacitor-start design and totally enclosed fan-cooled (TEFC) enclosure ensure optimal performance and protection. Suitable for use in Class I and Class II hazardous locations with a temperature code of T3B, this motor is perfect for applications in chemical plants, oil refineries, and other industries where safety and reliability are paramount. Its compact size and easy installation make it a valuable asset for any operation.
Top product features:
- Totally Enclosed Fan Cooled motor design for improved durability and reduced maintenance
- Capacitor-Start motor design for efficient starting and operation
- Continuous duty cycle for consistent and reliable performance
Top product applications:
- Pump motor for hazardous location
- Industrial equipment motor for Class I, Class II, T3B environments
- Equipment motor for high temperature applications up to 40°C
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.0/5.4-5.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.44
- Package Width: 8.20
- Package Height: 7.11
- Package Weight: 33.00
Product info last updated on January 31, 2026 10:20pm UTC
Category: Motors
