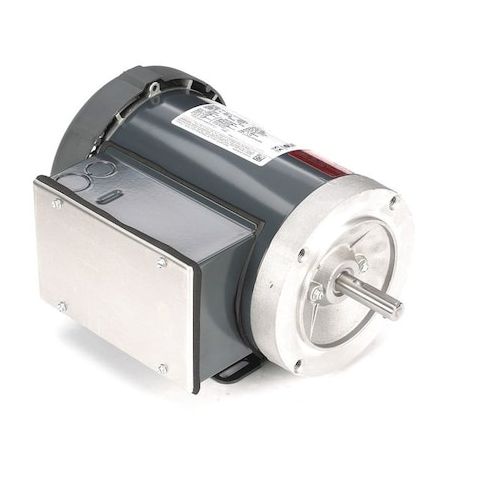

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:056B34F5326
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1.5 hp capacitor-start/run general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 3,450 RPM nameplate speed make it suitable for various machinery and equipment. The motor's totally enclosed fan-cooled design provides excellent protection against dust and moisture, while its Class B insulation ensures reliable operation. With a high service factor of 1.15, this motor can handle demanding applications and withstand high temperatures up to 40°C. It's an ideal choice for use in factories, workshops, and other industrial settings where reliability and efficiency are crucial.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reliability
- Continuous duty cycle for uninterrupted operation
- Capacitor-Start/Run motor design for efficient and reliable starting and running capabilities
Top product applications:
- Industrial pumps
- Water treatment plants
- Food processing machinery
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.2/7.7-7.1 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 34.00
Product info last updated on February 3, 2026 8:19am UTC
Category: Motors
