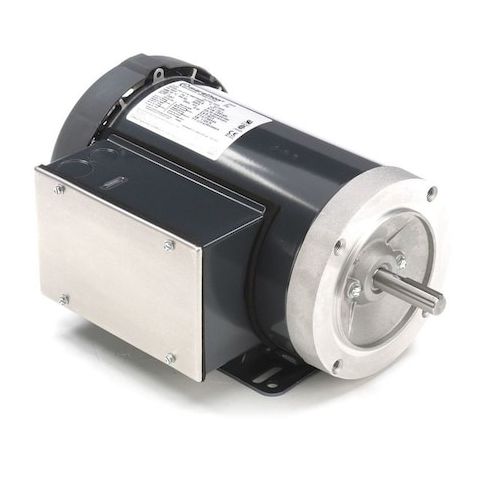

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56HC Frame MPN:056B17F5305
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56HC Frame
This 1.5 hp single-phase motor is designed for general purpose applications and features a capacitor-start/run design for efficient operation. Suitable for use at 115/208-230V AC, it provides reliable power in a variety of settings. The motor's totally enclosed fan-cooled design ensures durability and long lifespan, making it ideal for continuous duty cycles. With a maximum ambient temperature of 40°C and a service factor of 1.15, this motor is perfect for applications such as pumps, fans, and conveyors in industrial and commercial settings. Its compact 56HC frame makes it easy to integrate into existing systems.
Top product features:
- Capacitor-start/run design for efficient motor operation
- Totally enclosed fan-cooled enclosure for protection from environmental factors
- Continuous duty cycle capability for reliable operation in high-demand applications
Top product applications:
- Pumps for industrial or commercial use
- Fans for cooling or ventilation systems
- Conveyors for moving materials or products in manufacturing environments
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 15.2/8.2-7.6. A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 42.00
Product info last updated on February 2, 2026 9:16am UTC
Category: Motors
